簡要描述：應用領域廣泛適用于固定安裝或靈活應用于低機械應力，無機械拉力或負荷，非動力控制的可移動的干燥環境中。高電導率屏蔽材料，可有效防止外界強電場的干擾，確保數據傳輸?shù)?/p>
產品型號
廠商性質
發布時間
瀏覽次數
產品分類
應用領域
廣泛適用于固定安裝或靈活應用于低機械應力，無機械拉力或負荷，非動力控制的可移動的干燥環境中。高電導率屏蔽材料，可有效防止外界強電場的干擾，確保數據傳輸?shù)耐暾院头€(wěn)定性。常用于信號的連接、測量、控制、呼叫和雙向?qū)χv系統、時鐘裝置、電子稱重設備和辦公電器設備的連接。具有無鹵阻燃材質的電纜，在發生火災情況下，不會釋放出有毒有害的氣體。通常安裝在公共建筑物、實驗室、交易和運輸中心，但不適合戶外使用。
Application field
Widely suitable for fixed installation or flexible application in low mechanical stress, no mechanical tension or load, non-power controlled movable dry environment. High-conductivity shielding material can effectively prevent the interference of strong external electric fields and ensure the integrity and stability of data transmission. Commonly used for signal connection, measurement, control, call and two-way intercom system, clock device, electronic weighing equipment and office electrical equipment connection. The cable with halogen-free flame retardant material will not release toxic and harmful gases in the event of fire. Usually installed in public buildings, laboratories, trading and transportation centers, but not suitable for outdoor use.

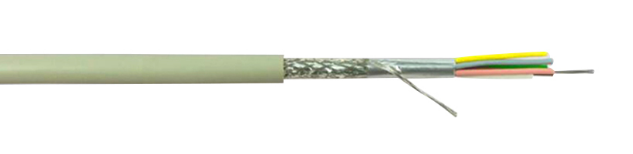

結構
·導體
細裸銅絲絞合導體，符合VDE 0295標準要求
·絕緣
特殊無鹵絕緣料，符合EN 50290標準要求
·芯線標識
分色或數字編碼
·屏蔽
鍍錫銅絲編織屏蔽，覆蓋率≥80%
·外護套
特殊無鹵護套料，符合EN 50290標準要求
·護套標識
灰色護套
Structure
·Conductor
Fine bare copper wire stranded conductors according to VDE 0295
·insulation
Special halogen-free insulating material according to EN 50290
·Core wire identification
Color separation or digital encoding
·shield
Tinned copper wire braided shield, coverage ≥ 80%
·Outer sheath
Special halogen-free sheath compound according to EN 50290
·Sheath identification
grey jacket
技術參數
·額定電壓U0/U
300/500V
·測試電壓
2000V
·運行溫度
-40℃至+70℃
·最小彎曲半徑
6×電纜直徑Ф
Technical parameter
·Rated voltage U0/U
300/500V
·Test voltage
2000V
·Operating temperature
-40°C to +70°C
·Minimum bending radius
6×Cable DiameterФ
特性
·無毒
·耐低溫
·抗干擾
·環保
符合RoHS指令
·阻燃性
符合EN60332-1-2
Characteristic
·Non-toxic
·Low temperature resistance
·Anti-interference
·environmental Protection
RoHS compliant
·Flame resistance
Complies with EN60332-1-2
參照標準
VDE 0812:1988
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
Reference standard
VDE 0812:1988
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
