應用領域
該變頻器電機動力電纜，可確保廠房和建筑物、工業設施和操作裝置中的電磁兼容性，避免電磁場干擾對周圍電器設備造成不良影響?？勺鳛楣╇姾瓦B接電纜用于中等機械應力下的固定安裝，適用于干燥、潮濕環境，以及戶外敷設?？捎糜谄嚭褪称饭I(yè)、環保技術、包裝行業和機床中，以及工業用泵、通風機、傳送帶和空調裝置等設備。
Application field
The inverter motor power cable can ensure electromagnetic compatibility in workshops and buildings, industrial facilities and operating devices, and avoid adverse effects of electromagnetic field interference on surrounding electrical equipment. Can be used as a power supply and connection cable for fixed installations under moderate mechanical stress, suitable for dry and wet environments, as well as for laying outdoors. They are used in the automotive and food industry, environmental technology, packaging industry and machine tools, as well as in industrial pumps, fans, conveyor belts and air conditioners.

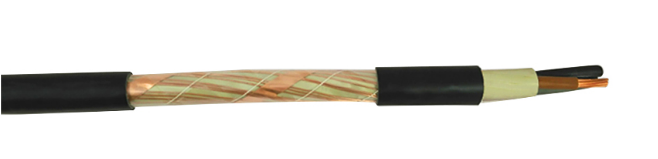

結構
·導體
細裸銅絲絞合導體，符合EN60228標準中第5類導體要求
·絕緣
特殊熱塑性絕緣料，符合EN50363-7標準要求
·芯線標識
同心導體結構設計
采用不同顏色標識，設置有綠/黃接地線
·屏蔽
鋁箔加鍍錫銅絲編織屏蔽，覆蓋率≥80%
·外護套
特殊熱塑性護套料，符合EN50363-4-1標準要求
·護套標識
黑色護套
Structure
·Conductor
Fine bare copper wire stranded conductor, meeting the requirements of class 5 conductors in the EN60228 standard
·insulation
Special thermoplastic insulating material, meets the requirements of EN50363-7 standard
·Core wire identification
Concentric conductor structure design
Different color identification, set with green/yellow ground wire
·shield
Aluminum foil and tinned copper wire braided shield, coverage rate ≥ 80%
·Outer sheath
Special thermoplastic sheath material, in line with the requirements of EN50363-4-1 standard
·Sheath identification
black jacket
技術參數
·額定電壓U0/U
0.6/1kV
·測試電壓
4000V
·運行溫度
-5℃至+70℃
·最小彎曲半徑
10×電纜直徑Ф
Technical parameter
·Rated voltage U0/U
0.6/1kV
·Test voltage
4000V
·Operating temperature
-5°C to +70°C
·Minimum bending radius
10×Cable DiameterФ
特性
·低電容
·耐輻射
·自屏蔽
·環保
符合RoHS指令
·阻燃性
符合EN60332-1-2
Characteristic
·Low capacitance
·Radiation resistant
·Self-shielding
·environmental Protection
RoHS compliant
·Flame resistance
Complies with EN60332-1-2
參照標準
IEC 60502-1 Ed2.1:2009
DIN VDE 0276-603:2010
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
Reference standard
IEC 60502-1 Ed2.1:2009
DIN VDE 0276-603:2010
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
