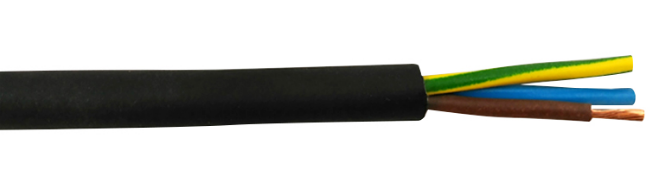

當前位置： 首頁 > 產品展示 > 清潔能源 > 風力發電電纜
簡要描述：應用領域該電纜屬于重型橡膠護套柔性電纜，廣泛適用于中等機械應力下的干燥、潮濕、濕潤地區中，以及露天環境和農業設施?？捎糜诠I(yè)設備如鍋爐、加熱板、手持燈具、電動工
產品型號
廠商性質
發布時間
瀏覽次數
產品分類
應用領域
該電纜屬于重型橡膠護套柔性電纜，廣泛適用于中等機械應力下的干燥、潮濕、濕潤地區中，以及露天環境和農業設施?？捎糜诠I(yè)設備如鍋爐、加熱板、手持燈具、電動工具等，例如鉆頭、圓鋸以及家用工具，和可移動式電機或現場設備，也可用于風電機組固定安裝設備。該電纜也適用于固定安裝在墻面中和營房中?？芍苯佑糜谠O(shè)備部件和機械零件上，例如升降機和起重機，也可用于保護性和固定安裝在管道或設備中。
Application field
The cable is a heavy duty rubber sheathed flexible cable and is widely used in dry, wet and humid areas under moderate mechanical stress, as well as in open air and agricultural facilities. It can be used in industrial equipment such as boilers, heating panels, hand-held lamps, power tools, etc., such as drills, circular saws and household tools, and mobile motors or field equipment, and can also be used in fixed installation equipment for wind turbines. The cable is also suitable for fixed installation in walls and barracks. Can be used directly on plant components and mechanical parts, such as lifts and cranes, as well as for protective and fixed installations in pipes or equipment.
結構
·導體
細裸銅絲絞合導體，符合HD 383標準中第5類導體要求
·絕緣
特種橡膠混合物絕緣料，符合EN50363-1標準要求
·芯線標識
采用分色或數字編號標識
·外護套
特種橡膠混合物護套料，符合EN50363-2-1標準要求
·護套標識
黑色護套
Structure
·Conductor
Stranded conductor of fine bare copper wire, meeting the requirements of class 5 conductors in HD 383
·insulation
Special rubber compound insulating material, in line with EN50363-1 standard
·Core wire identification
Color separation or number identification
·Outer sheath
Special rubber compound sheath material, in line with the requirements of EN50363-2-1 standard
·Sheath identification
black jacket
技術參數
·額定電壓U0/U
450/750V
·測試電壓
2500V
·運行溫度
-30℃至+60℃
·最小彎曲半徑
7.5×電纜直徑Ф
Technical parameter
·Rated voltage U0/U
450/750V
·Test voltage
2500V
·Operating temperature
-30°C to +60°C
·Minimum bending radius
7.5×Cable DiameterФ
特性
·柔軟
·耐候性
·阻燃性
符合EN60332-1-2
Characteristic
·soft
·Weather resistance
·Flame resistance
Complies with EN60332-1-2
參照標準
HD 22.4 S4:2004
EN 50525-2-21:2011
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
Reference standard
HD 22.4 S4:2004
EN 50525-2-21:2011
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
